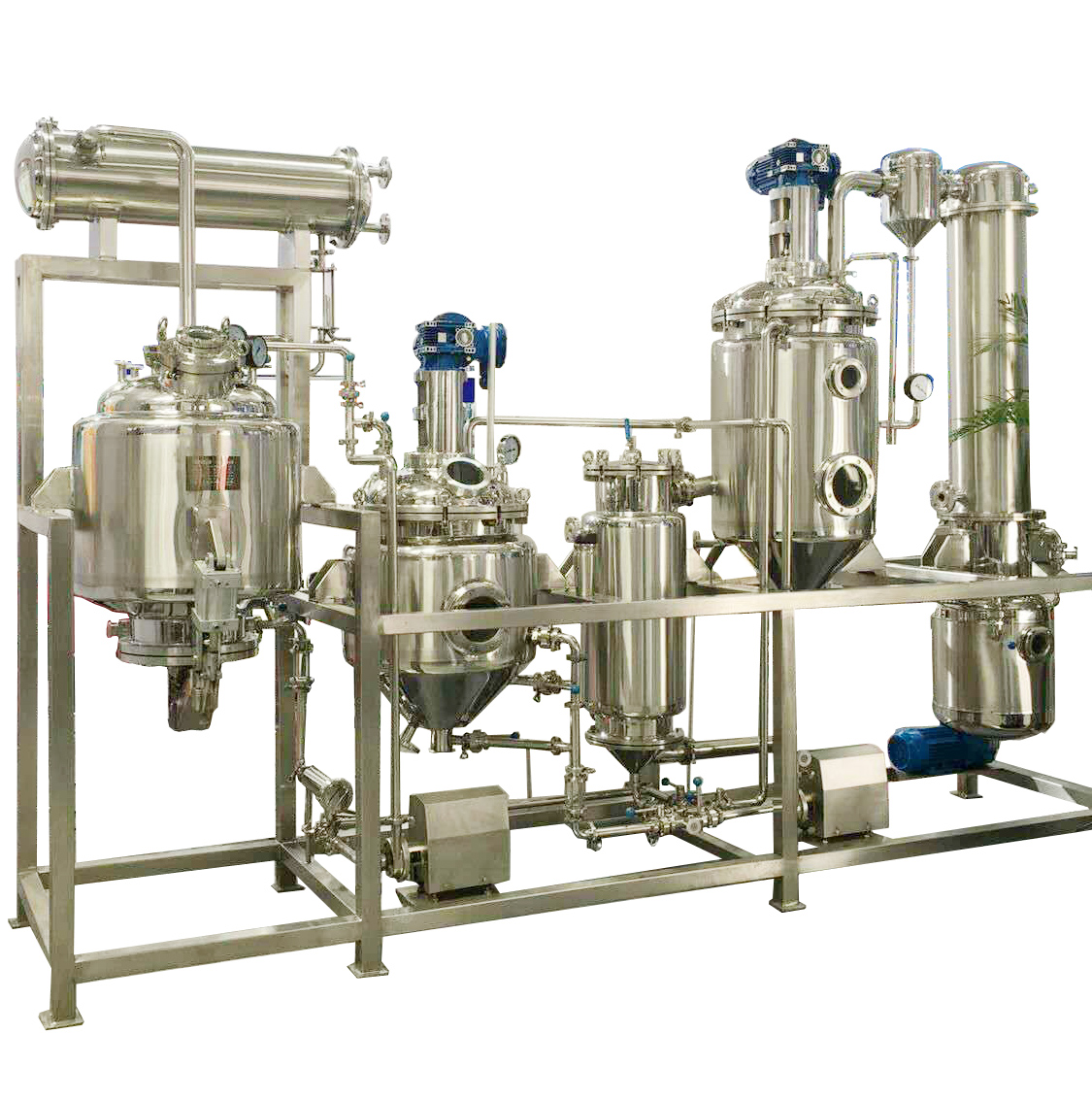

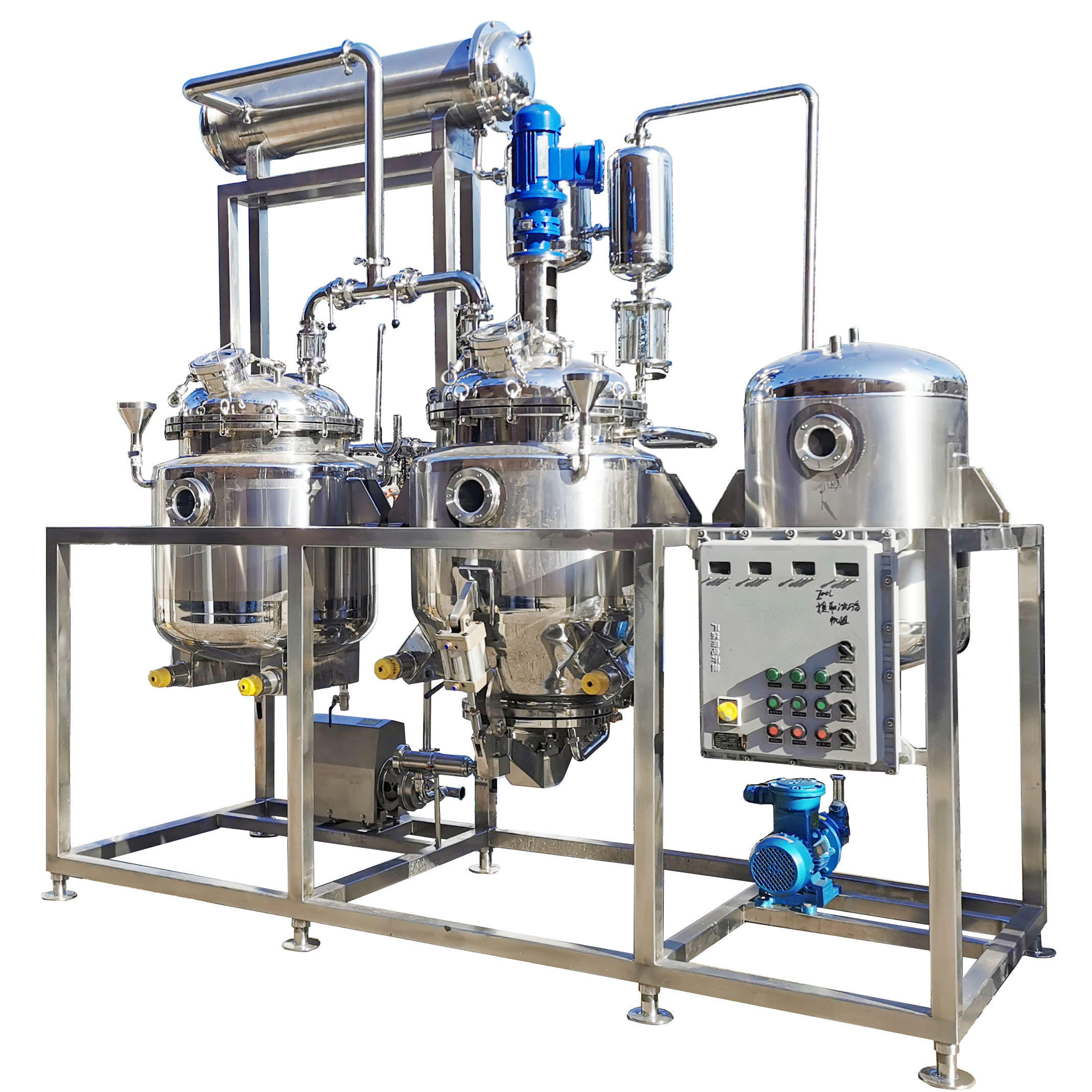

Stainless Steel Small Type Chinese Herb And Plant Extraction Concentration Machine

Product Description

Products Description
Small Type Chinese Herb Extraction Concentration Machine
The multifunctional herbs ultrasonic Extraction and Concentration Equipment is suitable for herbs, health care products, bio-pharmaceuticals, cosmetics, food and other industries, normal temperature and pressure extraction, ultrasonic extraction, ultrasonic recycling extraction and ultrasonic countercurrent extraction and other processes. This device can be ultrasonic dynamic continuous countercurrent recycling extraction, suitable for pharmaceutical, biological products business, enterprises, laboratories and pharmaceutical factory R & D department of many varieties, production use.

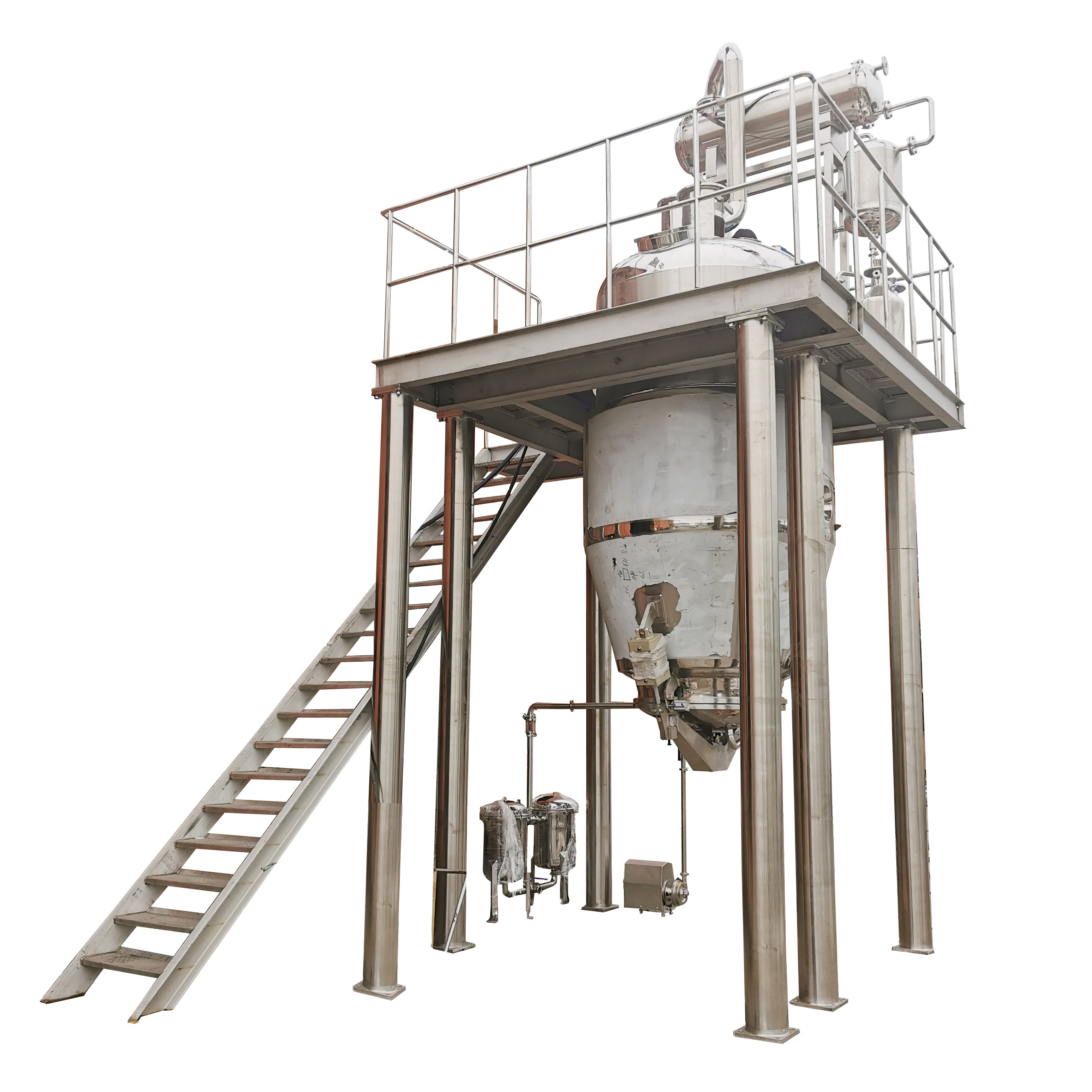

Chinese herb extraction concentration machine view 1

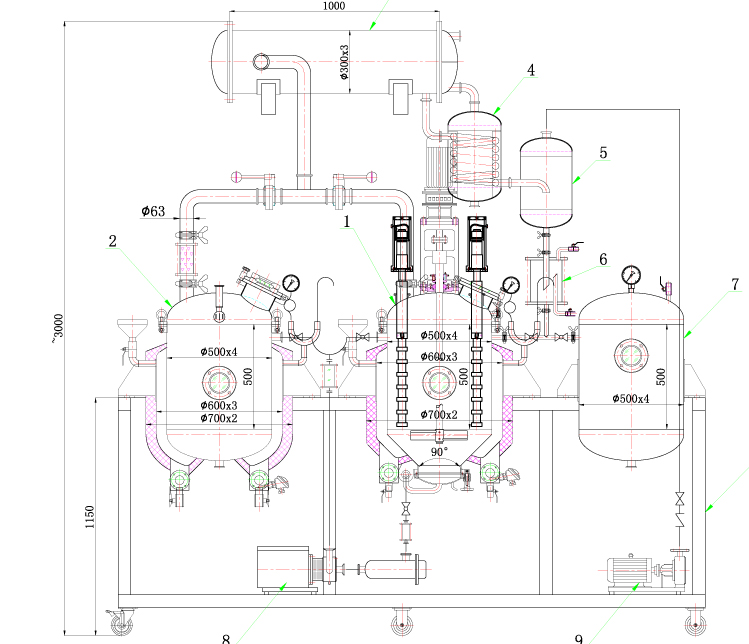

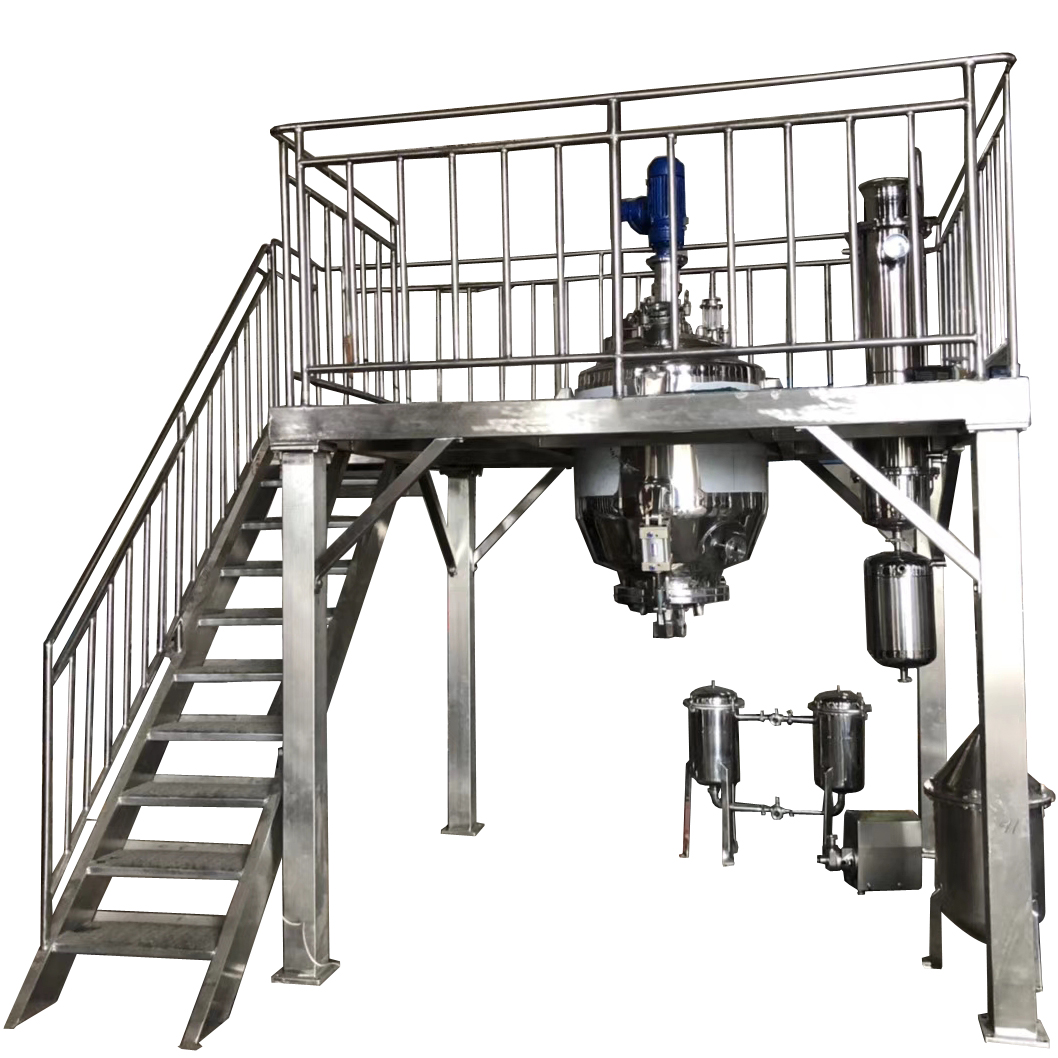

Chinese herb extraction concentration machine view 2
Product Parameters
Model CTN-50 CTN-100 CTN-200 CTN-300
Volume L 50 100 200 300
Evaporation capacity kg/h 20 50 80 100
Motor power kw 0.55 0.75 0.75 1.1
steam consumption kg/h 25 60 90 120
System vacuum Mpa -0.06 to -0.08
Jacket pressure Mpa 0.09~0.03 0.09~0.03 0.09~0.03 0.09~0.03
Compressed air Mpa 0.5~0.6 0.5~0.6 0.5~0.6 0.5~0.6
Steam temperature ℃ 100~125
Key Features
  • Combined Efficiency: Integrates both extracting and concentrating processes, making it easy to operate. Polished on internal and external sides in accordance with strict GMP requirements.
  • Core Setup: Mainly composed of an extracting tank, condenser, cooler, oil-water separator, filter, concentrator, and liquid-recycling tank.
  • Advanced Research: Built through extensive technician research and development, allowing for multiple experimental configurations with specialized pipeline installation.
  • Sealed Operation: The entire process is conducted under completely sealed conditions. Complete extraction and concentration in a single run with lower solvent consumption and shorter processing times.
  • Optional Configs: Optional stirrer devices can be installed. Available in manual, semi-automatic, and fully-automatic operations, with either electric heating or steam heating options.

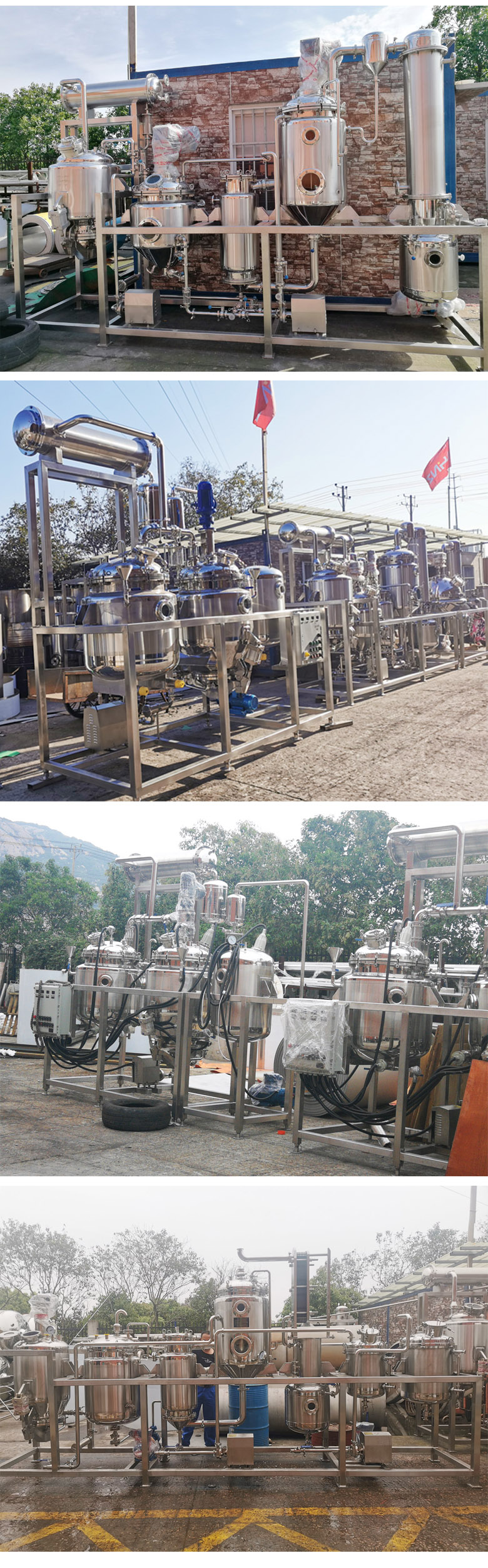

Ultrasonic Extraction and Concentration Equipment details
Enterprise Profile
We are a specialized high technology enterprise integrating the design, manufacture and service of biochemical pharmaceutical equipment, dairy food and beverage equipment, chemical equipment and sanitary fluid equipment. Our enterprise is devoted to technology investment and culture construction. We have modern workshops and complete manufacturing facilities. We absorb and train various talented people. We have design, manufacture, and installment capability. Our facility establishes a machinery R&D center, a fluid equipment machining and inspecting center and a machinery manufacturing center. After more than ten years of continuous development, we have formed a scientific and innovative team. Many of our products have obtained national invention patents.

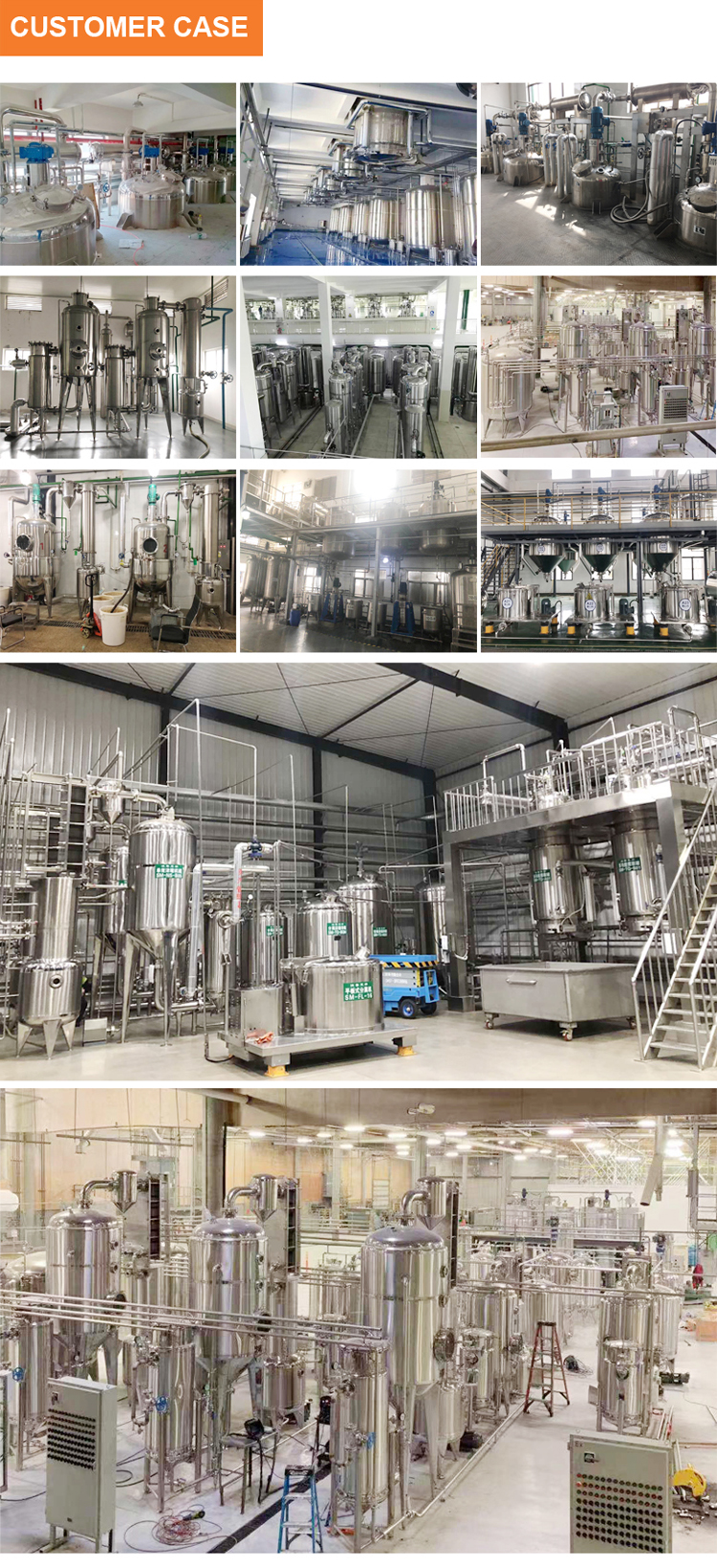

Modern Manufacturing Workshop
Product Packaging & Delivery
Product packaging method
Secure delivery packing
Frequently Asked Questions
Q1 How can customers track the progress of their order?

We will take photos or videos during manufacturing every two weeks to keep you updated on the order status. Once the goods are completed, we will provide detailed photos or videos for inspection. You are also welcome to visit our factory to perform inspections in person.

Q2 Do you provide equipment installation services overseas?

Yes, if required, we can send our installation engineer to your factory to assist with installation and testing. You will need to provide round-trip tickets and accommodation for our engineer. The extra salary rate of an installation engineer is 200 USD/day.

Q3 How is the equipment quality controlled?

All materials we use come with material certifications. Before any piece of equipment leaves our factory, it goes through a complete quality and assurance control inspection to ensure it meets all specifications and is in proper working order before delivery.

Q4 What is the typical shipment schedule and delivery process?

We will send you photos of your order being loaded into the shipping container at the factory. The shipping container generally leaves the port 3-4 days after loading. We will send you a bill of lading and a final statement of account within one week of that time. The bill of lading includes container numbers so you can track the shipping.

Q5 What industries is this extraction and concentration equipment suitable for?

This multifunctional system is ideal for processing herbs, health care products, bio-pharmaceuticals, cosmetics, and food. It supports normal temperature and pressure extraction, ultrasonic extraction, ultrasonic recycling extraction, and ultrasonic countercurrent extraction.

Q6 Are there different control and heating configurations available?

Yes, we offer manual, semi-automatic, and fully-automatic types as requested by clients. For heating methods, you can choose between electric heating and steam heating options.
